VENETO

SUMMARY

The research in the Veneto Region Pilot addresses the complex interactions between natural and human-induced hazards, worsened by climate change, which affect various socio-economic and environmental systems. Veneto’s diverse landscapes—ranging from mountains and plains to coastal areas—experience interlinked hazards such as extreme precipitation, storm surges (Figure 3), floods, droughts, landslides, tornadoes, forest fires, and water pollution. The primary challenge is to create a forward-looking, multi-risk planning approach that effectively addresses these diverse landscapes. Focusing on sectors such as forestry, ecosystems, tourism, and regional finance, with additional attention to food, agriculture, and water resources, the Veneto Region Pilot combines quantitative (e.g., Climate Risk Indicators, Machine Learning, and Artificial Intelligence) and qualitative (e.g., conceptual risk models, storylines, and participatory processes) methods to assess multi-hazard-risks (Figure 1). These tools are used to explore trade-offs and synergies among hazards and to assess risks in this highly varied region under the guidance of the MYRIAD-EU multi-risk systemic framework. The Union Civil Protection Mechanism Peer Review Assessment Framework (PRAF) is being employed to co-develop forward-looking disaster risk management pathways accounting for future system states evidenced by Machine Learning algorithms (Mysiak et al., 2021).

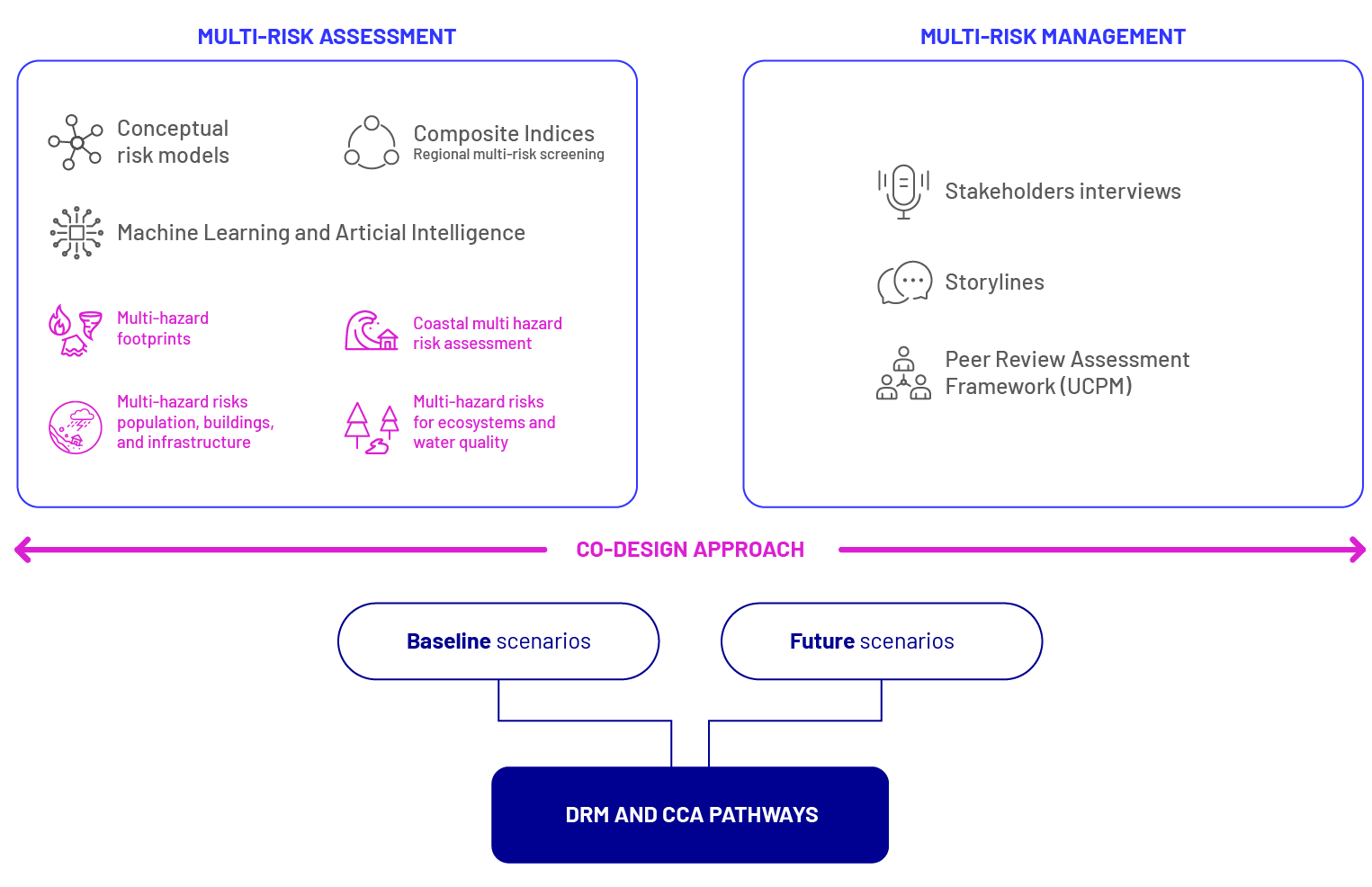

Figure 1. Different approaches for multi-risk assessment and management in Veneto.

Relationship to the MYRIAD-EU Framework

Finding a system definition

The system has been defined through desk reviews and workshops with local stakeholders. This resulted in a multi-risk conceptual model identifying the main hazards affecting the Veneto Region, their interactions across different landscapes, the vulnerability categories and the main assessment endpoints.  Hazards are classified following UNDRR standards, categorized by their drivers (e.g., temperature, precipitation, wind, flooding, terrestrial, environmental, biological) and by their onset speed (slow/sudden). Interactions are based on MYRIAD-EU categories, encompassing compound, consecutive, triggering, and amplifying hazards. The model addresses hot and dry events, such as heatwaves, droughts, and wildfires on land, and marine heatwaves and saltwater intrusion at sea, which can lead to secondary environmental and biological hazards such as air pollution, insect outbreaks, algal blooms, and eutrophication. Cold and wet events are also captured, including cyclones, storms, extreme winds, floods, and landslide-prone conditions in mountain areas, as well as coastal floods and slow-onset threats such as erosion and sea-level rise. Alternating interactions between droughts and extreme precipitation are also considered in the model. Exposure and vulnerability parameters include topography (e.g., elevation, slope, aspect, curvature), soil/geology (e.g., type of rocks, soil texture, skeleton, permeability), environmental (distance to rivers, distance to urban areas, land use, vegetation types), socio-economic (e.g., population, buildings, sectoral GVA). Sectoral impacts include health (excess mortality), tourism (number of arrivals), ecosystems (river water quality), and finance (e.g., exposed buildings).

This multi-risk conceptual model informs multi-hazard scenarios for Machine Learning applications. These include climate hazard interactions, territorial vulnerability, coastal impact assessments, and sector-specific risk analyses for ecosystems, populations, buildings, and infrastructures.

Characterisation of direct risk

Direct risk assessment in the Veneto Region Pilot has combined qualitative methods (e.g., interviews and focus groups with local stakeholders) with quantitative, Machine Learning (ML)-based approaches (Ferrario, Sanò, et al., in preparation). An adapted version of the MYRIAD-HESA has been implemented to define multi-hazard footprints at the local level over the historical period from 1992 to 2021, using an unsupervised ML method called DBSCAN (Ester et al., 1996). This ML approach has been used to create multi-hazard spatio-temporal footprints for current and future scenarios, focusing on four climate hazards: extreme precipitation, high winds, heat anomalies, and droughts (Figure 2). Preliminary spatial analysis shows that, historically, heat and drought events have been most frequent in the plains, while precipitation combined with wind and heat has been more common in coastal and mountainous areas.

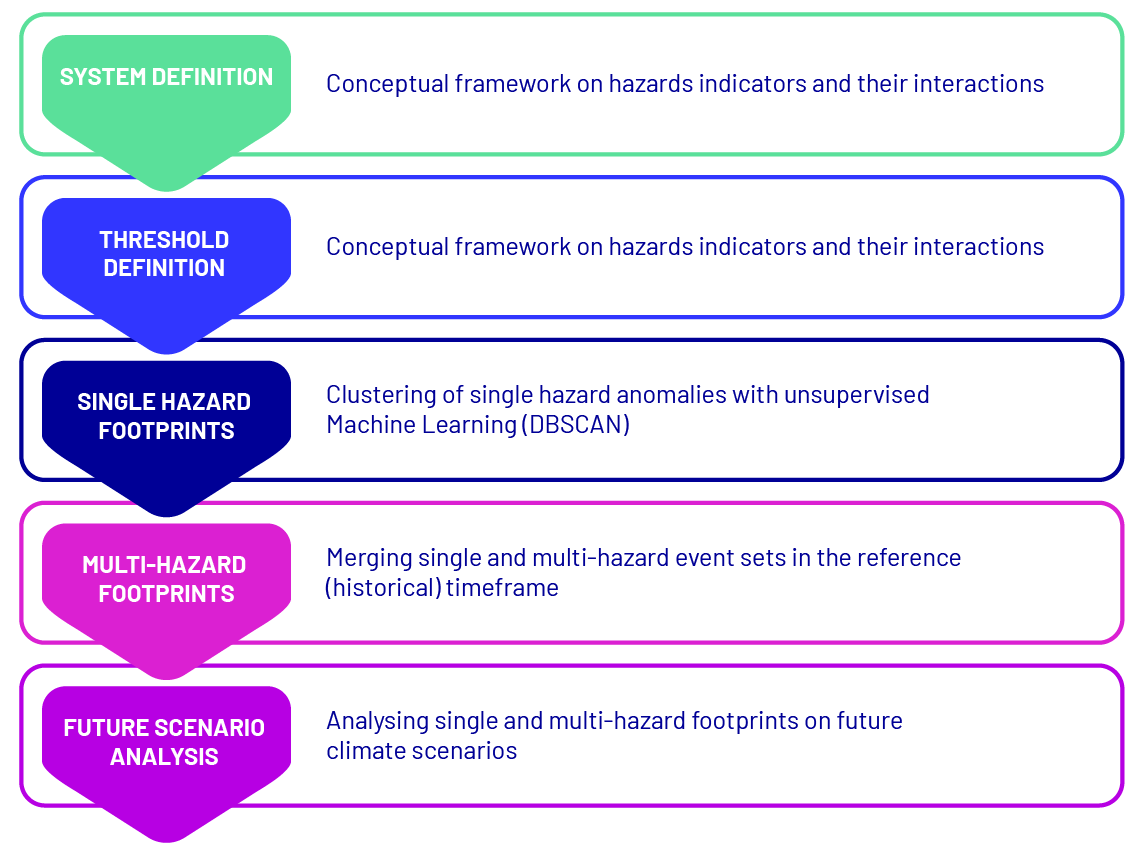

Figure 2. Methodology for the creation of multi-hazard spatio-footprints.

Additional ML applications are underway, including supervised ML for assessing ecosystem and river water quality risks and territorial vulnerabilities (population, buildings, infrastructure) (Ferrario, Tiggeloven, Casagrande, et al., in preparation). Preliminary findings have been shared with core and sectoral stakeholders in focus groups, fostering collaboration on risk assessment strategies for the Veneto Region Pilot. Specifically, the application on water quality risks focuses on understanding the interaction between extreme events (i.e., extreme precipitation, extreme heat, drought) and anthropogenic land use (i.e., agriculture and artificial surfaces) and their impacts on water quality (physical-chemical properties, specific pollutants, biological alterations). The study extends to all river water bodies of ecological interest in the Veneto Region (Nguyen et al., in preparation). Additionally, ML-based susceptibility mapping is used to study landslides and wildfires and assess direct multi-hazard risks over several socio-economic assets (tourism, buildings, population, infrastructures).

Characterisation of indirect risk

Interviews with local stakeholders provided valuable insights into the multi-hazard and multi-risk landscape of the Veneto Region, clarifying key challenges and validating sector priorities initially identified for the project. Core stakeholder feedback confirmed the primary sectors for analysis and highlighted recent significant multi-risk events, particularly emphasizing the Vaia storm’s widespread impacts. Stakeholders recognized the Vaia storm (2018) as a pivotal event with extensive cross-sectoral effects across short-, medium-, and long-term timelines, marking it as an ideal benchmark event for co-creating a regional risk storyline. In focus groups, the discussion expanded to examine the direct and indirect impacts of the Vaia storm across sectors, as well as the primary challenges faced before, during, and after the event. Together with stakeholders, “what if” considerations were discussed to envision how current/future climate, environmental, and socio-economic conditions could intensify or alter Vaia-like events.

Evaluation of direct and indirect risk

Specific thresholds related to acceptable/tolerable risk levels will not be identified and an in-depth evaluation of risks will not be performed in the Veneto Region Pilot. Instead, the approach focuses on gathering qualitative insights from stakeholders. These opinions were collected through interviews and focus groups to better understand perceptions and concerns regarding risks in the region. A special focus was given by all stakeholders to the Vaia storm, being considered as an excellent example of a multi- and systemic event with significant impacts on communities, economy, and ecosystems. Respondents also pointed out the potential spillover effects of future disasters on the economy, emphasizing the interconnectedness of the economic and tourism sectors. The health sector was also noted as being vulnerable, both currently and in the future.

Insights gathered from interviews and focus groups were further enriched by a review of scientific literature on the Vaia storm, which provided additional information on the event’s dynamics and its sectoral impacts, with a particular focus on key sectors of the Veneto Region. Finally, insights from the public consultation process conducted within the framework of the Regional Strategy for Climate Change Adaptation (SRACC) were also analysed and fed into the creation of the regional risk storyline.

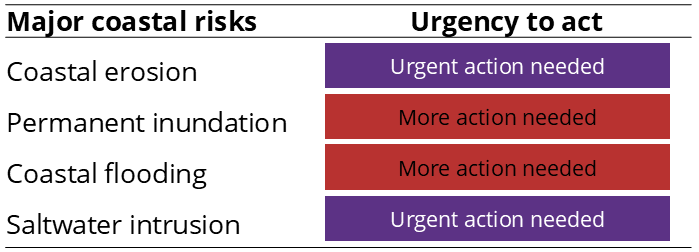

To support the application of the European Climate Risk Assessment (EUCRA) methodology to the coastal areas of the Veneto Region, a custom AI-based tool called COAST-AId has been developed. This tool facilitates the analysis and synthesis of extensive documentation, enabling a targeted and efficient approach. The methodology involves identifying the most significant risks affecting the region (e.g., coastal erosion, permanent inundation, coastal flooding, saltwater intrusion), assessing their severity across three timeframes (i.e., current, mid-century, and long-term) and evaluating the effectiveness and readiness of existing policies designed to address these risks. The results are rigorously evaluated through active engagement with local stakeholders and subject-matter experts. This collaborative process informs the EUCRA matrix to calculate the urgency to act in the Veneto coastal area, ultimately guiding the refinement of current policies to better mitigate and manage coastal risks.

Figure 3. Storm surge event occurred in Lido di Venezia (Venice, Italy) in autumn 2020 (Photo credits: Marco Contessa).

Defining risk management options

The definition of risk management options is ongoing, with a focus on assessing Disaster Risk Management (DRM) capabilities. DRM capabilities are understood as the ability to reduce, adapt to, or mitigate risks, as identified in the risk assessment, to acceptable levels. CMCC is currently supporting the European Commission – Directorate General for Civil Protection and Humanitarian Aid Operations (DG ECHO) in the implementation of the Union Civil Protection Mechanism Peer Review Programme of disaster risk management and civil protection systems. The main goal is to assist countries and regions in identifying pathways to resilience by conducting independent expert analyses and providing recommendations to strengthen their overall DRM systems. This approach is being applied to the Veneto Region to identify effective policy and operational strategies, encourage mutual learning, increase stakeholder awareness, and promote policy coherence.

The Veneto Region’s sectoral plans featured in the Regional Climate Change Adaptation Strategy have been examined via the COAST-AId tool to assess their effectiveness and level of preparedness, with the goal of guiding their refinement and improvement to address the identified coastal risks effectively. This analysis was achieved by applying the European Climate Risk Assessment (EUCRA) matrix to the coastal area of the Veneto region, incorporating information on risk identification, risk analysis, and policy evaluation. The matrix enabled the categorisation of the urgency to act into five levels: watching in brief, sustain current actions, further investigation, more action needed, and urgent action needed. This systemic framework offers decision-makers valuable insights, enabling the optimisation of policies and adaptation strategies tailored to the specific challenges of the Veneto coast.

Accounting for future system state

In the Veneto Region, the future state of multi-hazard footprints has been analysed using DBSCAN until the year 2070, under climate change scenarios Representative Concentration Pathways (RCP) 4.5 and 8.5 from the Very High-Resolution Projections over Italy of CMCC. The analysis for future scenarios indicates a shift: under RCP8.5, from 2010 to 2040, precipitation combined with heat, drought, or wind events are projected to dominate, but in the later years (2040-2070), nearly all areas are expected to experience more frequent heat and drought events. For RCP4.5, heat and drought events are prevalent across both time frames due to model projections of extended dry periods beginning around 2030-2040, whereas RCP8.5 shows a marked increase in drought events starting around 2040 (Ferrario, T. Tiggeloven et al., in preparation).

Additionally, a multi-risk assessment combining Multi-Layer Perceptron and Linear Regression models has been completed for the Veneto coastal area and for three climate change scenarios (i.e., RCP 2.6, RCP 4.5, and RCP 8.5) until 2100 (Dal Barco et al., 2024; Dal Barco et al., 2025). The analysis indicates that coastal impacts are expected to increase over the century, with notable variations between the different Representative Concentration Pathways (RCP) scenarios. In particular, the lowest number of impacts is projected under the lowest emission scenario (RCP 2.6), with around 35 impacts per year, the mid-emission scenario (RCP 4.5) estimates approximately 50 impacts per year, while the high-emission scenario (RCP 8.5) forecasts up to 60 impacts annually. This divergence between scenarios becomes more pronounced towards the end of the century: starting from 2040, impacts under the RCP 8.5 scenario show the steepest increase, whereas RCP 2.6 and RCP 4.5 paths diverging around 2060. Results from the multi-hazard risk assessment for ecosystems, river water quality, population and agriculture considering climate change and land use future scenarios will be added later.

Developing multi-risk pathways

The PRAF is supporting the development of cross-sectoral forward-looking DRM pathways for the Veneto Region (Mysiak et al., 2021). The PRAF covers seven key focus areas: (1) governance of disaster risk reduction, (2) risk assessment, (3) risk management planning, (4) risk prevention, (5) risk preparedness, (6) emergency response, and (7) recovery and lessons learned. Each area, broken down into six sub-topics (wedges in the right figure), is integral to conducting a DRM capabilities assessment and developing pathways to enhanced resilience (Figure 4).

The PRAF was introduced to local stakeholders to identify strengths, areas for improvement, and challenges in the regional DRM system, alongside trade-offs to consider when developing forward-looking DRM pathways.  The forward-looking DRM pathways draw on risk reduction and adaptation measures outlined in the preliminary document of the Regional Strategy for Climate Change Adaptation (SRACC), insights from the public consultation process conducted within the SRACC framework, and findings from interviews and focus groups with core stakeholders. These results were systematically analysed using the PRAF structure and presented to local core stakeholders to pave the way for a number of co-created consolidated pathways.

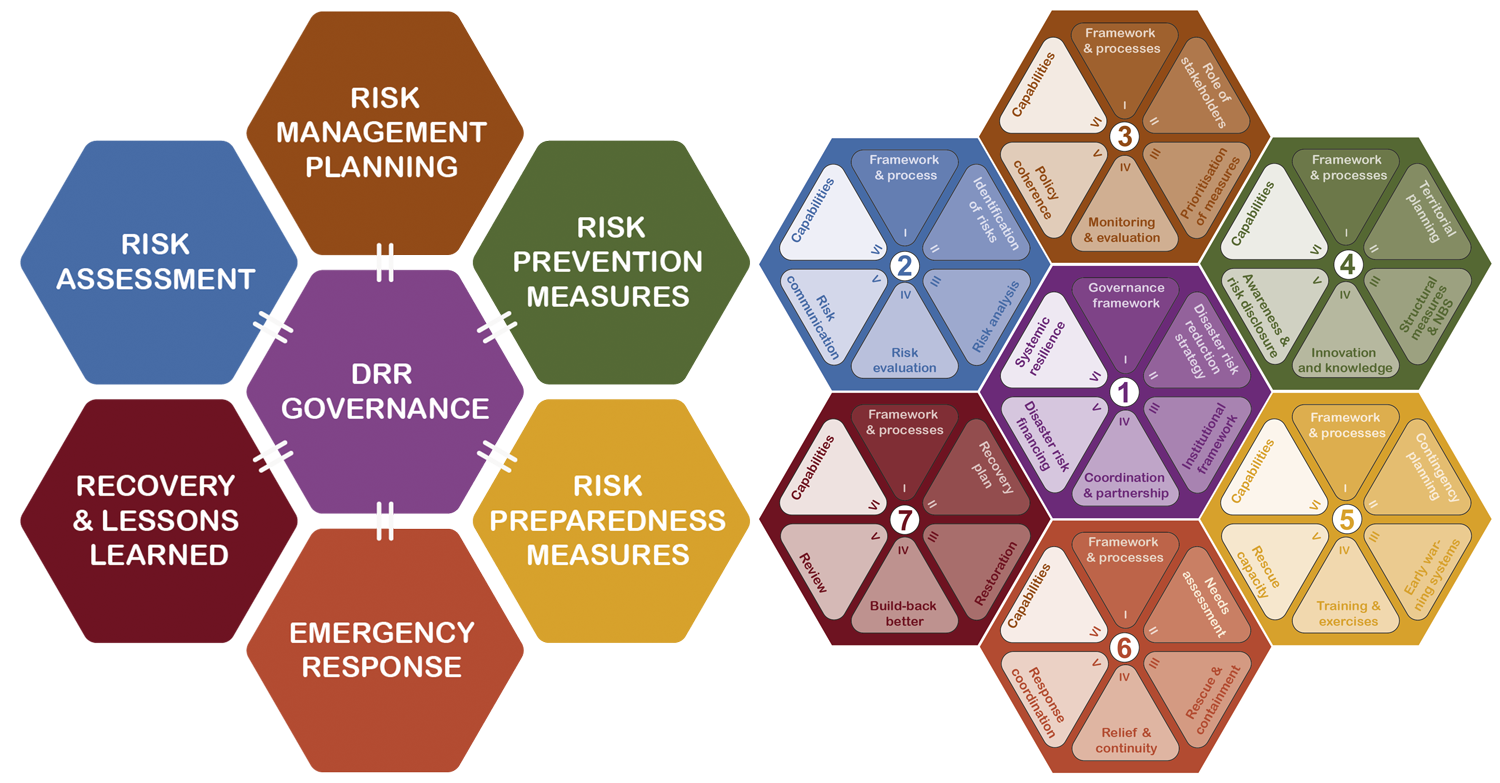

Figure 4. The Peer Review Assessment Framework (PRAF) – Main thematic areas of analysis for the UCPM Peer Review Programme 2020–2024 (shown on the left) and their corresponding sub-topics (listed on the right) (Mysiak et al., 2021).

References:

  1. Ester, M., Kriegel, H.P., Sander, J. & Xu, X. A density-based algorithm for discovering clusters in large spatial databases with noise. In kdd, Vol. 96, No. 34, pp. 226-231, 1996. https://dl.acm.org/doi/10.5555/3001460.3001507
  2. Casartelli, V., Salpina, D., Marengo, A., Vivo, G., Sørensen, J., & Mysiak, J. An innovative framework to conduct peer reviews of disaster risk management capabilities under the Union Civil Protection Mechanism (UCPM). International Journal of Disaster Risk Reduction, 120, 105350, 2025. https://doi.org/10.1016/j.ijdrr.2025.105350.
  3. Dal Barco, M.K., Maraschini, M., Nguyen, N.D., Ferrario, D.M., Rufo, O., Fonseca, H.L., Torresan, S., Vascon, S., & Critto, A. Integrating AI and climate change scenarios for multi-risk assessment in the coastal municipalities of the Veneto region. Science of the Total Environment, 965, 178586, 2025. https://doi.org/10.1016/j.scitotenv.2025.178586
  4. Dal Barco, M.K., Maraschini, M., Ferrario, D.M., Nguyen, N.D., Torresan, S., Vascon, S. & Critto, A. A machine learning approach to evaluate coastal risks related to extreme weather events in the Veneto region (Italy). International Journal of Disaster Risk Reduction, 108, 104526, 2024. https://doi.org/10.1016/j.ijdrr.2024.104526
  5. D. M. Ferrario, M. Sanò, M. Maraschini, S. Torresan, A. Critto. “Harnessing Machine Learning methods for climate multi-hazard and multi-risk assessment: a review”. (In preparation)
  6. D.M. Ferrario, T. Tiggeloven, S. Casagrande, M. Sanò, S. Torresan, A. Critto. “A Machine Learning approach for climate multi-risk in the Veneto Region.” (In preparation)
  7. D.M. Ferrario, T. Tiggeloven, M. Maraschini, M. Sanò, M. C. de Ruiter, A. Critto, S. Torresan. “A machine Learning methodology to identify current and future multi-hazard events.” (in preparation)
  8. Mysiak J, Casartelli V and Torresan S.: Union Civil Protection Mechanism – Peer Review Programme for disaster risk management: Assessment Framework. 2021 https://doi.org/10.25424/CMCC-CHC1-TF40)
  9. N.D. Nguyen, J. Furlanetto, S. Torresan, A. Critto. “Understanding Multi-(Hazard-)Risk Dynamics between Land Use, Climate Extremes and Water Quality leveraging Artificial Intelligence”.  (In preparation)
